Betterfuse贝特 그룹»너무 흘러 보호 장치»범퍼 퓨즈 시리즈

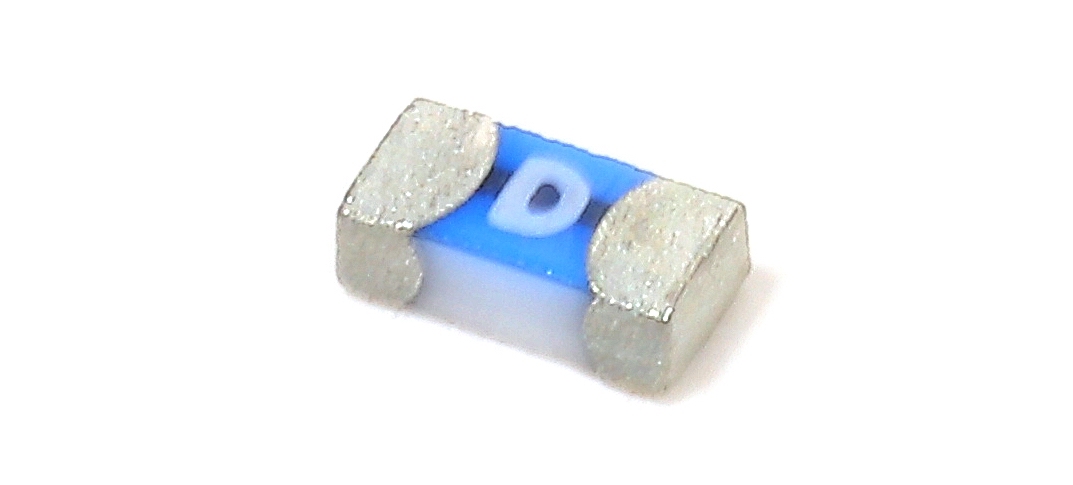

No.064/0603
Mainly used in handheld electronics, LCD monitors, battery packs, hard drives, servers, computers,
scanners and printers, data modems, game consoles, car chargers, digital cameras, DVD players, notebooks, DC-DC converters, etc.
- 제품 특성
- 기술 자원을
- 환경 정보
Time - current features：Fast-Acting(F)
Standard:UL248-14
Materials:Substrate: Ceramic,Termination: Silver over-plated with nickel and Tin
Operating Temperature:-55℃ to +150℃
Storage Conditions:+10℃ to +60℃
Relative humidity:≤75% yearly average Without dew, maximum 30 days at 95%
Soldering Parameters:260℃.≤10 sec (Wave Soldering),300℃.≤2 sec (Hand Soldering)
Soldering Peak:260℃. 10 sec.280℃. 5 sec. (IEC 60068-20)
Approvals: cURus
Breaking Capacity:50A@63VDC
