Betterfuse group»Overcurrent Protection»9mm Fuses
No.931/8.3×7.6mm
Series：9mm Fuses
keyword：No.931/8.3*7.6*4.1mm

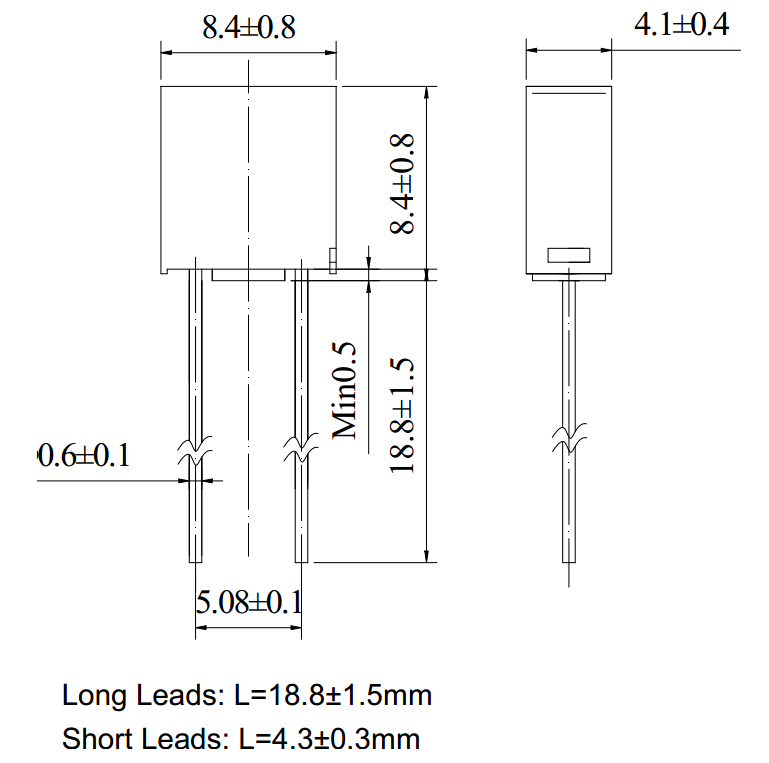

product drawing after browse expand to full size
Any questions?Please contact the Betterfuse Service Team
931 Series is quick low breaking ability fuse, apply to the over-current protection circuits which the ac voltage is less than 250V and the breaking capacity is less than 130A .
931 series fuse is mainly used in LED driver circuit, power adapter, battery chargers, industrial control equipment, etc.
- Features
- Technology
- Environmental
Time-Current characteristic: Fast-Acting(F)
Breaking Capacity: 130A@250Vac
Standard: IEC 60127-3/IV
Approvals: cURus, TUV, CCC, PSE
Material: Body- thermoplastic, lead- tin-plating copper
Operation Temperature: -55℃ ~ +125℃
Weldability: 260℃≤5 seconds(wave-soldering), 350℃≤3 seconds(hand welding)
Soldering Peak: 260℃, 10 seconds, /280℃, 5 seconds
Storage conditions: +10℃ ~ +60℃,average annual relative humidity ≤75%,dry maximum value of 30 days is 95%
Breaking Capacity: 130A@250Vac
Standard: IEC 60127-3/IV
Approvals: cURus, TUV, CCC, PSE
Material: Body- thermoplastic, lead- tin-plating copper
Operation Temperature: -55℃ ~ +125℃
Weldability: 260℃≤5 seconds(wave-soldering), 350℃≤3 seconds(hand welding)
Soldering Peak: 260℃, 10 seconds, /280℃, 5 seconds
Storage conditions: +10℃ ~ +60℃,average annual relative humidity ≤75%,dry maximum value of 30 days is 95%
