Betterfuseグループ»過電流保護部品»３シリ―ズヒュ―ズ

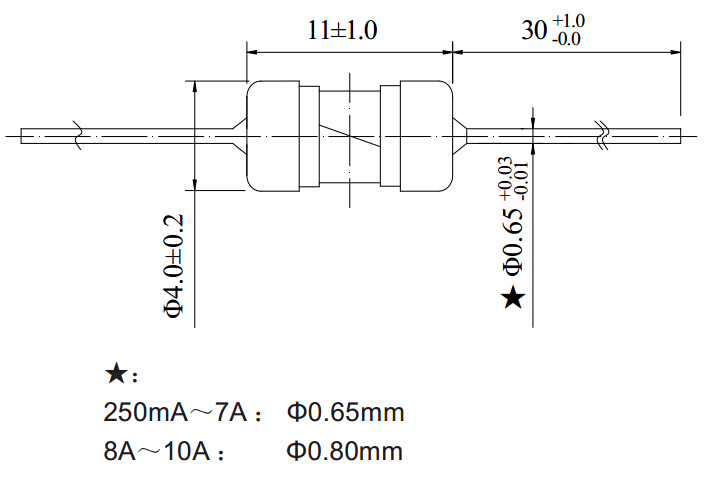

No.331/3.6*10mm
質問があれば？贝特支援グループを連絡ください
331 series is fast low ability to fuse, suitable for ac voltage 250 v, in less than 63 A protection circuit breaking capacity.
The 331 series fuse is mainly used in lighting, power supply, power adapter.
- 製品特性
- 技術センター
- 環境情報
Time - current features： Storage conditions：+10℃—+60℃
Fast action(F) On average relative humidity a year≤75%
Standard：IEC-60127-3/Ⅲ Dry， 30 days maximum 95%
Material Vibration Resistance: 24 cycle /15min(EN 60068-6)
Enclosure：glass tube Amplitude: 10 to 60 HZ in the amplitude of 0.75 mm
Acceleration: 60-2000 hz in 10 g acceleration
Solderability: 260℃，≤10s，（Wave） 350℃，≤3s， （manual）
Metal cap: nickel plated brass amplitude
Axial lead:nickel plating, copper wire of tin plating
Working temperature:：-55℃—+125℃
Soldering Heat Resistance:260℃，10s
