過電流保護部品
NO.244 series
Rated current (A):
0.25, 0.315, 0.4, 0.5, 0.63, 0.8, 1, 1.25, 1.6, 2, 2.5, 3, 3.15, 4, 5, 7
0.25, 0.315, 0.4, 0.5, 0.63, 0.8, 1, 1.25, 1.6, 2, 2.5, 3, 3.15, 4, 5, 7
AC (V): 125/250；DC (V): 125

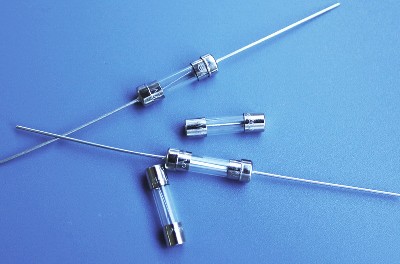

No.522/5*20mm
Rated current (A):
0.100, 0.125, 0.160, 0.200, 0.250, 0.315, 0.400, 0.500, 0.630, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.5
0.100, 0.125, 0.160, 0.200, 0.250, 0.315, 0.400, 0.500, 0.630, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.5
AC (V): 250
No.066/0603 size
Rated current (A): 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0, 7.0, 8.0
DC (V): 32
No.332/3.6*10mm
Rated current (A):
0.250, 0.300, 0.315, 0.350, 0.375, 0.400, 0.500, 0.630, 0.750, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.5
0.250, 0.300, 0.315, 0.350, 0.375, 0.400, 0.500, 0.630, 0.750, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.5
AC (V): 125/250

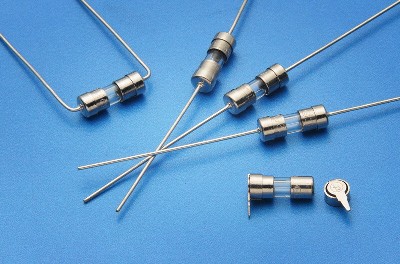

No.331/3.6*10mm
Rated current (A):
0.250, 0.300, 0.315, 0.350, 0.375, 0.400, 0.500, 0.630, 0.750, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.5
0.250, 0.300, 0.315, 0.350, 0.375, 0.400, 0.500, 0.630, 0.750, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.5
AC (V): 125/250

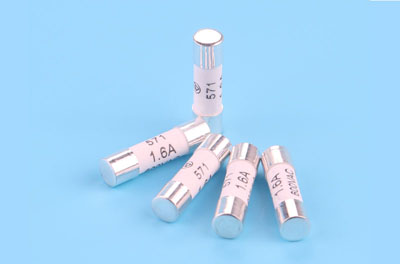

No.571/5*20mm
Rated current (A):
0.200, 0.400, 0.500, 0.600, 0.800, 1, 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, 12, 15, 20,
0.200, 0.400, 0.500, 0.600, 0.800, 1, 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, 12, 15, 20,
Rated Voltage AC（V）： 660

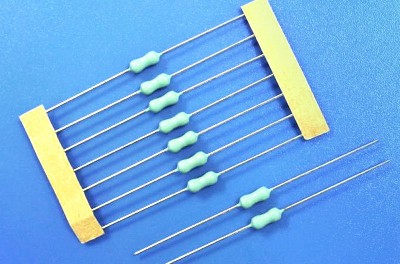

No.211/3*7mm
Rated current (A):
0.100, 0.125, 0.160, 0.200, 0.250, 0.315, 0.400, 0.500, 0.630, 0.800, 1.000, 1.250, 1.600, 2.000, 2.500, 3.150, 4.000, 5.000, 6.
0.100, 0.125, 0.160, 0.200, 0.250, 0.315, 0.400, 0.500, 0.630, 0.800, 1.000, 1.250, 1.600, 2.000, 2.500, 3.150, 4.000, 5.000, 6.
AC (V): 125/250
