チップヒュ―ズシリ―ズ
NO.244 series
Rated current (A):
0.25, 0.315, 0.4, 0.5, 0.63, 0.8, 1, 1.25, 1.6, 2, 2.5, 3, 3.15, 4, 5, 7
0.25, 0.315, 0.4, 0.5, 0.63, 0.8, 1, 1.25, 1.6, 2, 2.5, 3, 3.15, 4, 5, 7
AC (V): 125/250；DC (V): 125

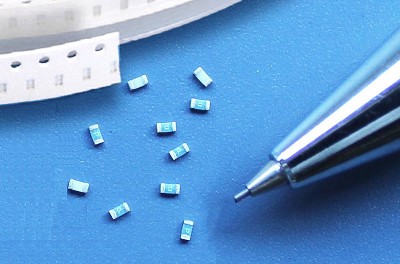

No.066/0603 size
Rated current (A): 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0, 7.0, 8.0
DC (V): 32

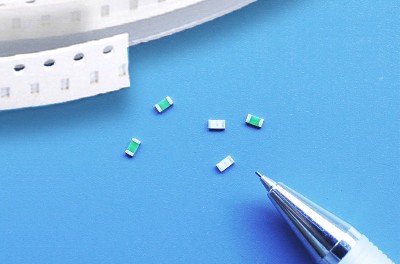

No.121/1206 size
Rated current (A):
0.25, 0.375, 0.5, 0.75, 1, 1.25, 1.5, 2, 2.5, 3, 4, 4.5, 5, 6.5, 7, 8, 10, 12, 15, 20
0.25, 0.375, 0.5, 0.75, 1, 1.25, 1.5, 2, 2.5, 3, 4, 4.5, 5, 6.5, 7, 8, 10, 12, 15, 20
AC (V): 32；DC (V):63

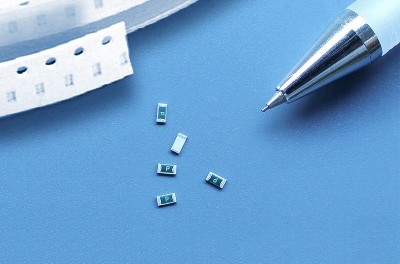

No.123/1206 size
Rated current (A):
1.000, 1.500, 2.000, 2.500, 3.000, 3.5.000, 4.000, 4.500, 5.000
1.000, 1.500, 2.000, 2.500, 3.000, 3.5.000, 4.000, 4.500, 5.000
AC (V): 12；DC (V):32/63

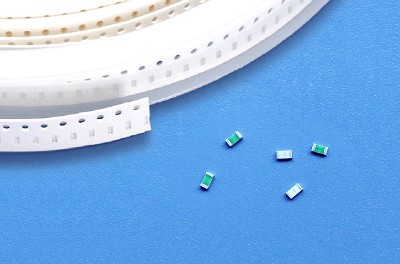

No.124/1206 size
Rated current (A):
0.250, 0.375, 0.500, 0.750, 1.000, 1.250, 1.5
0.250, 0.375, 0.500, 0.750, 1.000, 1.250, 1.5
AC (V): 125；DC (V): 125

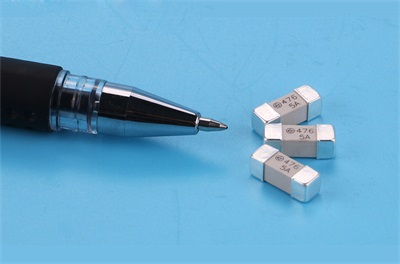

NO.476 series
Rated current (A): 0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0, 5.0
AC（V）： 125/250; DC（V）： 125/250
NO.246 series
Rated current (A):
0.25, 0.315, 0.4, 0.5, 0.63, 0.8, 1, 1.25, 1.6, 2, 2.5, 3, 3.15, 4, 5, 7
0.25, 0.315, 0.4, 0.5, 0.63, 0.8, 1, 1.25, 1.6, 2, 2.5, 3, 3.15, 4, 5, 7
AC (V): 350
No.125/1206 size
Rated current (A): 0.25, 0.375, 0.5, 0.75, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 7.0, 8.0, 10.0, 12.0, 15.0, 20.0, 25.0, 30.0
DC (V): 32 24 / 32 / 63 / 72
