５シリ―ズヒュ―ズ
No.522/5*20mm
Rated current (A):
0.100, 0.125, 0.160, 0.200, 0.250, 0.315, 0.400, 0.500, 0.630, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.5
0.100, 0.125, 0.160, 0.200, 0.250, 0.315, 0.400, 0.500, 0.630, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.5
AC (V): 250
No.571/5*20mm
Rated current (A):
0.200, 0.400, 0.500, 0.600, 0.800, 1, 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, 12, 15, 20,
0.200, 0.400, 0.500, 0.600, 0.800, 1, 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, 12, 15, 20,
Rated Voltage AC（V）： 660

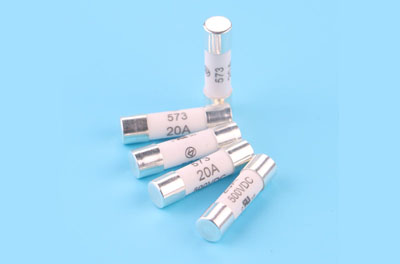

No.573/5*20mm
Rated current (A):
0.200, 0.400, 0.500, 0.600, 0.800, 1, 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, 12, 15, 20
0.200, 0.400, 0.500, 0.600, 0.800, 1, 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, 12, 15, 20
Rated Voltage DC（V）： 400/500

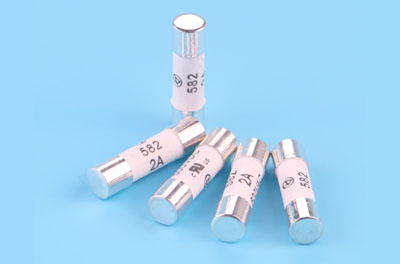

No.582/5*20mm
Rated current (A):
0.500, 0.630, 0.800, 1, 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, 12, 15, 16, 20
0.500, 0.630, 0.800, 1, 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, 12, 15, 16, 20
Rated Voltage AC（V）： 600; DC（V）： 400/500
No.523/5*20mm
Rated current (A):
0.500, 0.630, 0.800, 1.000, 1.250, 1.600, 2.000, 2.500, 3.150, 4.000, 5.000, 6.300, 8.000, 10.000
0.500, 0.630, 0.800, 1.000, 1.250, 1.600, 2.000, 2.500, 3.150, 4.000, 5.000, 6.300, 8.000, 10.000
AC (V): 250
No.524/5*20mm
Rated current (A):
0.500, 0.630, 0.800, 1.000, 1.250, 1.600, 2.000, 2.500, 3.150, 4.000, 5.000, 6.300, 8.000, 10.000, 12.000, 12.5.000, 15.000, 16.
0.500, 0.630, 0.800, 1.000, 1.250, 1.600, 2.000, 2.500, 3.150, 4.000, 5.000, 6.300, 8.000, 10.000, 12.000, 12.5.000, 15.000, 16.
AC (V): 125/250
No.521/5*20mm
Rated current (A):
0.250, 0.300, 0.315, 0.350, 0.375, 0.400, 0.500, 0.630, 0.750, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.5
0.250, 0.300, 0.315, 0.350, 0.375, 0.400, 0.500, 0.630, 0.750, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.5
AC (V): 125/250

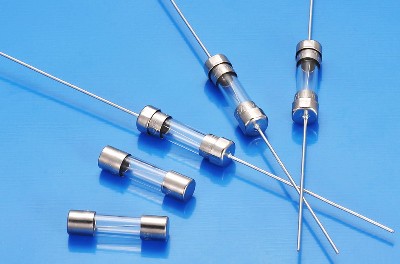

No.511/5*20mm
Rated current (A):
0.250, 0.315, 0.400, 0.500, 0.630, 0.750, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.500, 4.000, 5.000, 6.3
0.250, 0.315, 0.400, 0.500, 0.630, 0.750, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.500, 4.000, 5.000, 6.3
AC (V): 125/250
No.512/5*20mm
Rated current (A):
0.250, 0.300, 0.315, 0.350, 0.375, 0.400, 0.500, 0.630, 0.750, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.5
0.250, 0.300, 0.315, 0.350, 0.375, 0.400, 0.500, 0.630, 0.750, 0.800, 1.00, 1.250, 1.500, 1.600, 2.000, 2.500, 3.000, 3.150, 3.5
AC (V): 125/250
