Betterfuseグループ»過電流保護部品»５シリ―ズヒュ―ズ

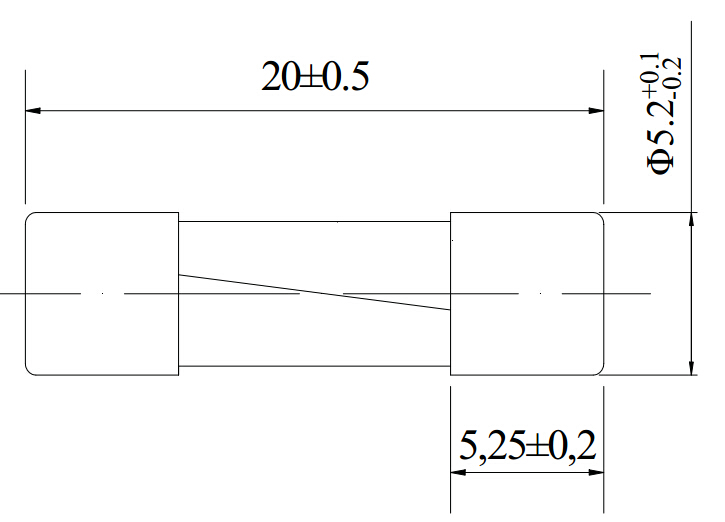

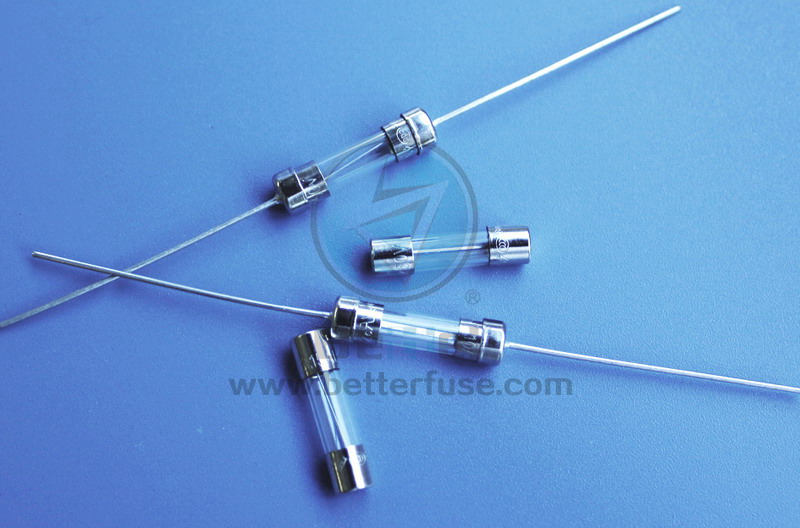

No.522/5*20mm
質問があれば？贝特支援グループを連絡ください
522 series is slow low ability to fuse, suitable for ac voltage 250 v, in less than 160 a protection circuit breaking capacity.
The 522 series fuse is mainly used in electronic equipment and protection circuits.
- 製品特性
- 技術センター
- 環境情報
Time - current features： Storage conditions：+10℃—+60℃
Time-delay(T) On average relative humidity a year≤75%
Standard：IEC-60127-2/II Dry， 30 days maximum 95%
Material Vibration Resistance: 24 cycle /15min(EN 60068-6)
Enclosure：glass tube Amplitude: 10 to 60 HZ in the amplitude of 0.75 mm
Acceleration: 60-2000 hz in 10 g acceleration
Solderability: 260℃，≤10s，（Wave） 350℃，≤3s， （manual）
Metal cap: nickel plated brass amplitude

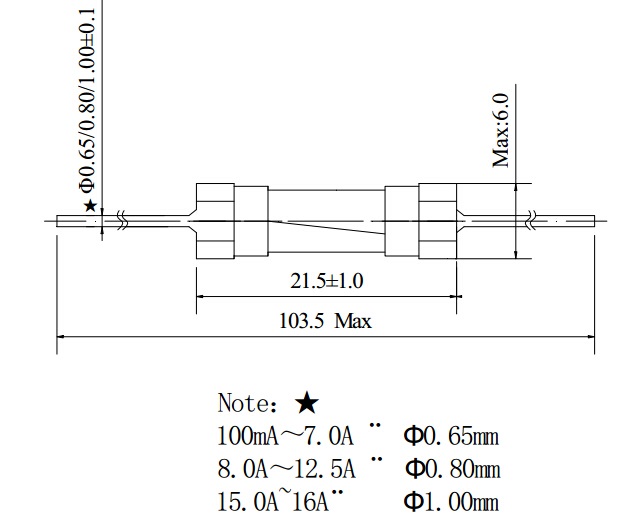

Axial lead:nickel plating, copper wire of tin plating
Working temperature:：-55℃—+125℃
Soldering Heat Resistance:260℃，10s
