Betterfuseグループ»過電流保護部品»６シリ―ズヒュ―ズ

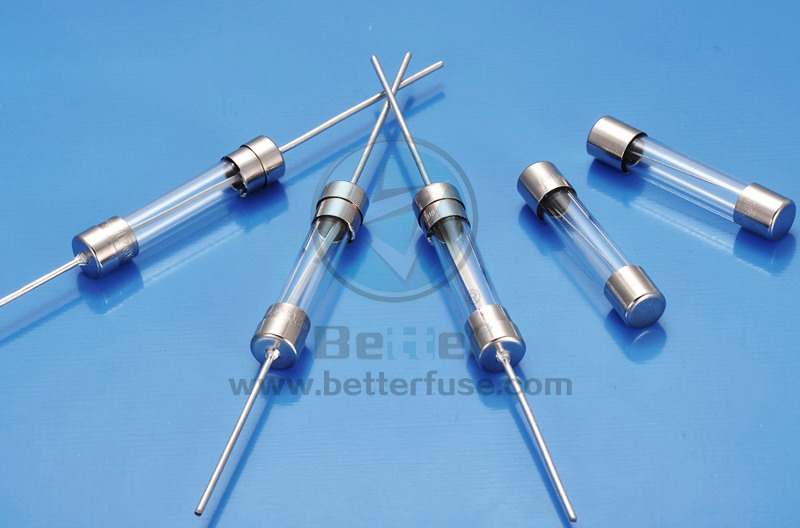

No.611/6.35*32mm
質問があれば？贝特支援グループを連絡ください
611 series is fast low ability to fuse, suitable for ac voltage 240 v, in less than 6ka protection circuit breaking capacity.
The 611 series fuse is mainly used in electronic devices and equipment protection circuits.
- 製品特性
- 技術センター
- 環境情報
Time - current features： Storage conditions：+10℃—+60℃
Fast action（F） On average relative humidity a year≤75%
Standard：UL-248-14 Dry， 30 days maximum 95%
Material Vibration Resistance: 24 cycle /15min(EN 60068-6)
Enclosure：glass tube Amplitude: 10 to 60 HZ in the amplitude of 0.75 mm
Acceleration: 60-2000 hz in 10 g acceleration
Solderability: 260℃，≤10s，（Wave） 350℃，≤3s， （manual）
Metal cap: nickel plated brass amplitude
Axial lead:nickel plating, copper wire of tin plating
Working temperature:：-55℃—+125℃
Soldering Heat Resistance:260℃，10s
