Betterfuseグループ»過電流保護部品»９シリ―ズヒュ―ズ

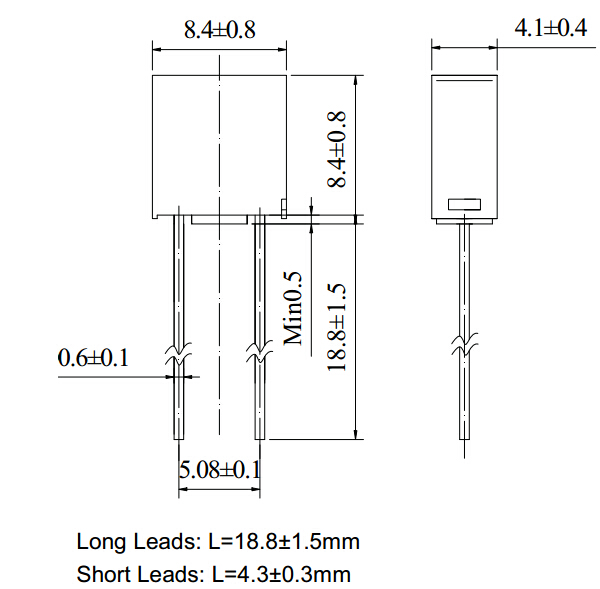

No.932/8.3*7.6*4.1mm
質問があれば？贝特支援グループを連絡ください
932 Series is slow low breaking ability fuse, apply to the over-current protection circuits which the ac voltage is less than 300 v, and the breaking capacity is less than 100 A .
932 series fuse is mainly used in LED driver circuit, power adapter, battery chargers, industrial control equipment, etc.
- 製品特性
- 技術センター
- 環境情報
Time - current features： Storage conditions：+10℃—+60℃
Time-Lag(T) On average relative humidity a year≤75%
Standard：IEC-60127-3/Ⅳ Dry， 30 days maximum 95%
Material Vibration Resistance: 24 cycle /15min(EN 60068-6)
Main portion：thermoplastic plastics Amplitude: 10 to 60 HZ in the amplitude of 0.75 mm
Lead: copper tin plating Acceleration: 60-2000 hz in 10 g acceleration
Working temperature:：-55℃—+125℃ Solderability: 260℃，≤10s，（Wave） 350℃，≤3s， （manual）Soldering Heat Resistance:260℃，10s
