Betterfuseグループ»過電流保護部品»６シリ―ズヒュ―ズ

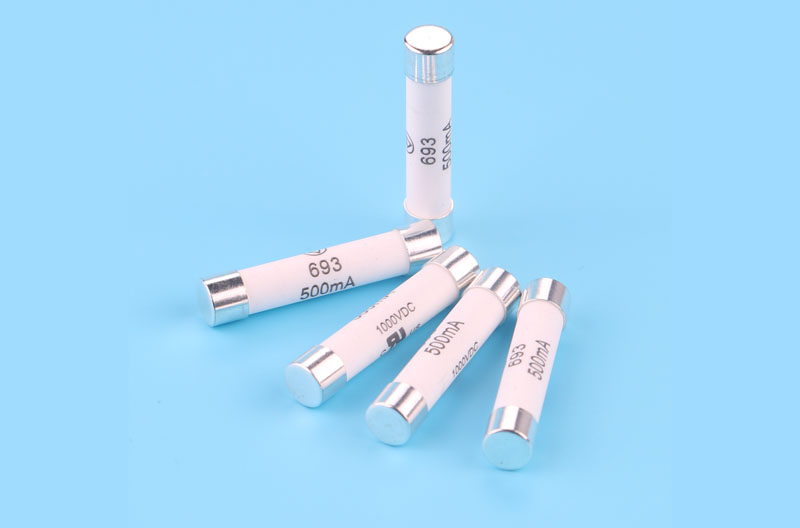

No.693/6.35*31.8mm
質問があれば？贝特支援グループを連絡ください
693 Series is fast-acting hig breaking capacity fuse. There are suitable for AC/DC 1000V voltage, and breaking capacity less than 10kA protection circuit.
The 693 series fuse is mainly used in digital measuring instruments short circuit protection.
- 製品特性
- 技術センター
- 環境情報
Time-Current Characteristic Storage Condition：
Fast-acting +10℃—+60℃
Sandard： Relative humidity: ≤75% yearly average
UL248-1 Without，maximum 30 days at 95%
Material: Vibration Resistance：
Body：Ceramic 24 cycles at 15min. each（EN 60068-6）
End Caps：Copper plated with silver 10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration
Operation Temperation： Soldering Parameters：
-55℃~125℃ 260℃，≤5 Sec.,（Wave Soldering）
Soldering Peak： 350℃，≤3 Sec., （Hand Soldering）
260℃，≤10 Sec.（IEC 60068-20）
