Betterfuseグループ»過電流保護部品»チップヒュ―ズシリ―ズ
No.121/1206 size
シリ―ズ：チップヒュ―ズシリ―ズ
商品キーワード：1206 size / NO.121

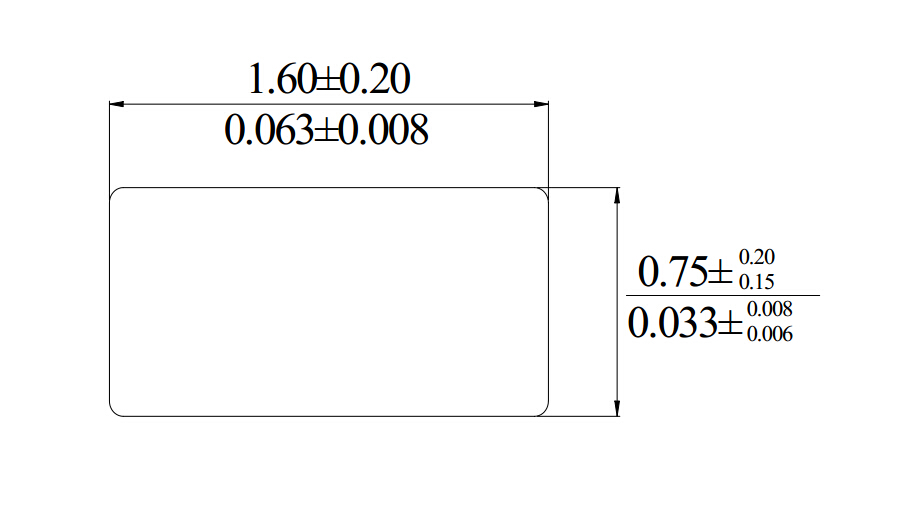

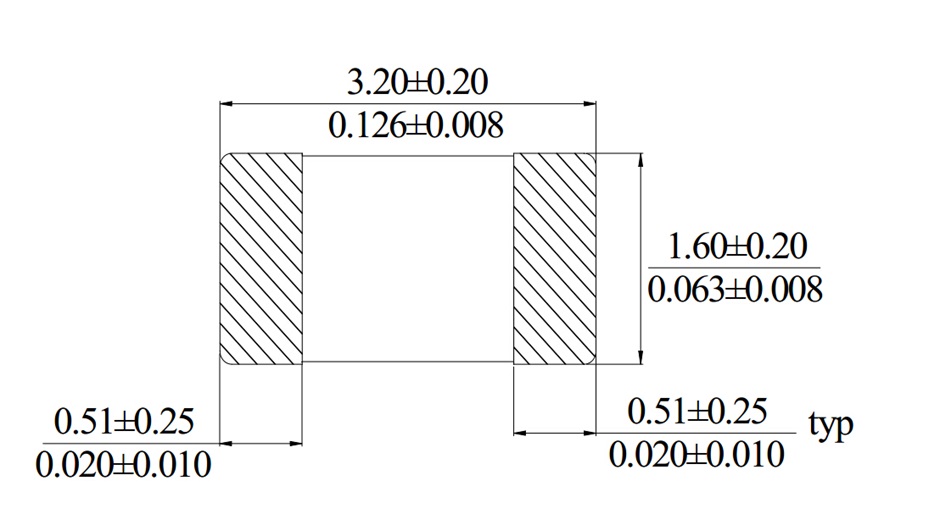

製品寸法図面であり、拡大に見える。
質問があれば？贝特支援グループを連絡ください

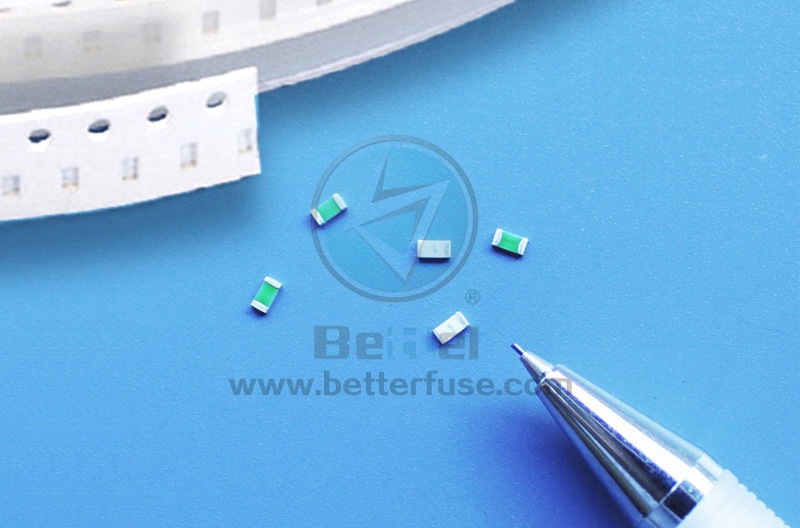

121 series fuse offers subminiature size, high performance, reliability and high quality.
Has wide application range, is mainly used in mobile phones, DVD players, battery, hard disk, digital camera, etc.
- 製品特性
- 技術センター
- 環境情報
Time - current features： Storage conditions：+10℃—+60℃
Fast action（F） On average relative humidity a year≤75%
Standard：UL-248-14 Dry， 30 days maximum 95%
Material：ceramics Solderability: 260℃，≤10s，（Wave） 350℃，≤3s， （manual）
Matrix ：Silver plated nickel and tin
Working temperature:：-55℃—+125℃
Soldering Heat Resistance:260℃，10s，/280℃，5s
