チップヒュ―ズシリ―ズ

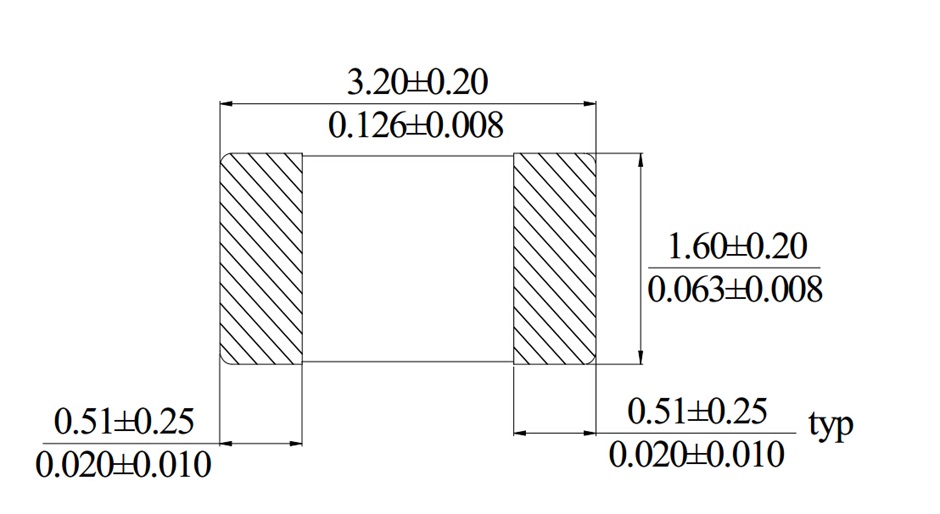

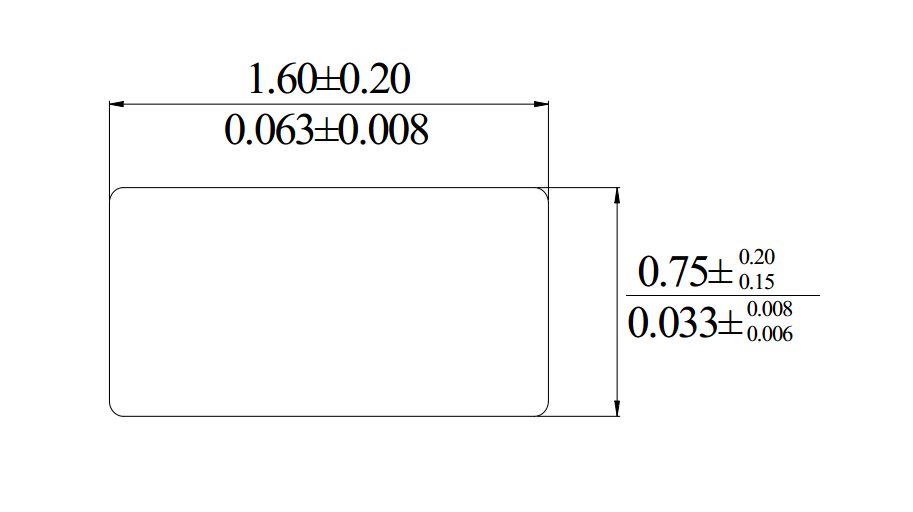

No.124/1206　size

シリ―ズ：チップヒュ―ズシリ―ズ

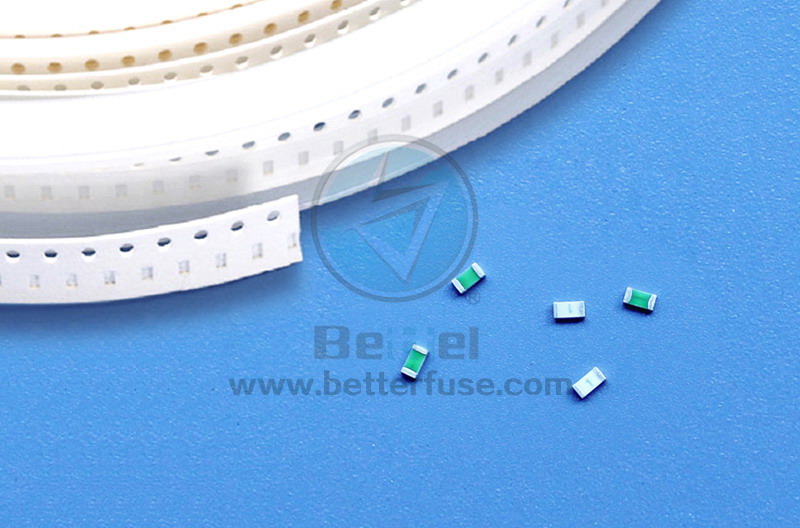

124 series fuse offers subminiature size, high performance, reliability and high quality.

Has wide application range, is mainly used in mobile phones, DVD players, battery, hard disk, digital camera, etc.

Time - current features：             Storage conditions：+10℃—+60℃
Fast action（F）                     On average relative humidity a year≤75%

Standard：UL-248-14                   Dry， 30 days maximum 95%

Material：ceramics                    Solderability:  260℃，≤10s，（Wave）   350℃，≤3s， （manual）
Matrix ：Silver plated nickel and tin

Working temperature:：-55℃—+125℃

Soldering Heat Resistance:260℃，10s，/280℃，5s
