Betterfuseグループ»過電流保護部品»５シリ―ズヒュ―ズ

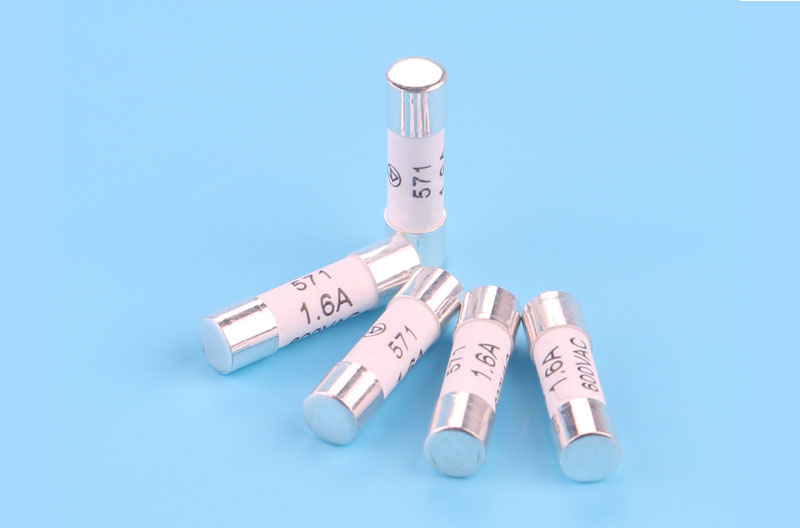

No.571/5*20mm
質問があれば？贝特支援グループを連絡ください
571 Series is fasting-acting breaking capacity fuse. There are suitable for AC 660V, and breaking capacity less than 200A protection circuit.
The 571 series fuse is mainly used in electronic equipment and protection circuits.
- 製品特性
- 技術センター
- 環境情報
Time-Current Characteristic Storage Condition：
Fast-acting(F) +10℃—+60℃
Sandard： Relative humidity: ≤75% yearly average
UL-248-1 Without，maximum 30 days at 95%
Material: Vibration Resistance：
Body：Ceramic 24 cycles at 15min. each（EN 60068-6）
End Caps：Copper plated with silver 10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration
Operation Temperation： Soldering Parameters：
-55℃~125℃ 260℃，≤5 Sec.,（Wave Soldering）
Soldering Peak： 350℃，≤3 Sec., （Hand Soldering）
260℃，≤10 Sec.（IEC 60068-20）
