Betterfuseグループ»過電流保護部品»チップヒュ―ズシリ―ズ

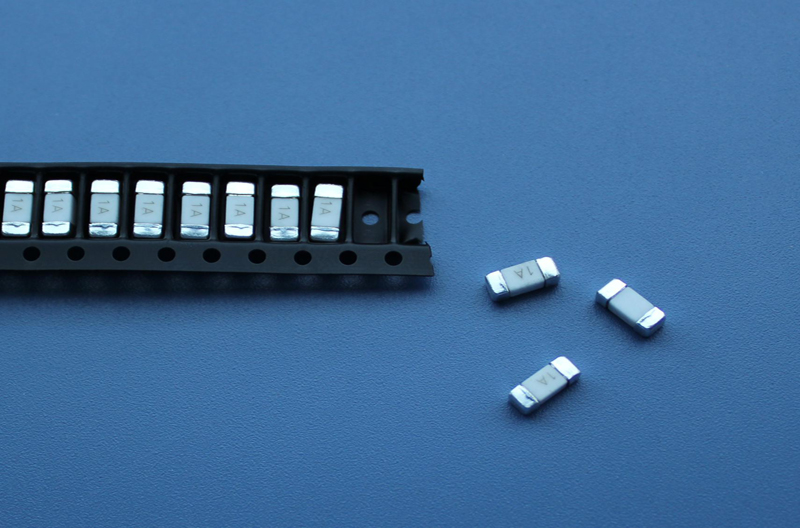

NO.246 series
シリ―ズ：チップヒュ―ズシリ―ズ
商品キーワード：246 series
質問があれば？贝特支援グループを連絡ください
246 series fuse with small size, high performance, high reliability, etc.
246 series used in notebook computers, telecommunication system, LCD/PDP TV, wireless products, such as liquid crystal display over-current protection circuits.
- 製品特性
- 技術センター
- 環境情報
Time - current features： Storage conditions：+10℃—+60℃
Time action（T） On average relative humidity a year≤75%
Standard：UL-248-14 Dry， 30 days maximum 95%
Material：ceramics Solderability: 260℃，≤10s，（Wave） 350℃，≤3s， （manual）
End-cap ：Silver plated and copper
Working temperature:：-55℃—+125℃
Soldering Heat Resistance:260℃，10s，/280℃，5s
